Displaying Images with Binary & Image Fields documentation for the dotCMS Content Management System

You may add images to Content Types using either Binary fields or Image fields. You may display images and access the properties of the image using both types of fields, but the methods to view and access image properties varies depending on which type of field is used.

Binary Field Helper Properties and Methods

When accessing a Binary field, you may access several helper properties and methods to easily generate URLs which retrieve different versions of the image, including the image thumbnail, raw and resize exporters:

Property or MethodImage Displayed by Returned URI
rawUriThe “raw” version of the image (as it's stored in the system, with no filters applied).
getResizeUri(w, h)The image resized to the specified width (w) and height (h).
resizeUriThe image with the resize parameters (e.g. /filter/Resize) added to the end - but without the width and height filters specified.
getThumbnailUri(w, h, ?????)A thumbnail version of the image, with the specified width (w) and height (h), and ????.
thumbnailUriA thumbnail version of the image, with default width and height.
pathThe path in the folder system for that fileAsset
titleThe fileName of the fileAsset

Properties to Access Image IDs and URIs

Access MethodExample Velocity CodeExample Result
“Shorty” ID$content.shortyf29effee9b
“Shorty” URL$content.shortyUrl or
$content.fieldVar.shortyUrl
/dA/f29effee9b/bm-logo.png
“Shorty” URL using inode
(instead of identifier)
$content.fileAsset.shortyUrlInode/dA/468bdf6d30/bm-logo.png

Distinguishing Among Multiple Fields

When there are multiple Image fields or multiple Binary fields in the same Content Type, retrieving a URI from the properties of the content item itself (rather than from the named field of the content item) will return the appropriate URI of the first field of the appropriate type within the Content Type.

For example, if a Content Type has two Image fields, with Velocity variable names of screenshot1 and screenshot2, and a URI is retrieved from the content object directly (such as by using the $content.shortyUrl property), the URI returned will be the URI of the screenshot1 field.

To access the URI of a specific Image or Binary field, you can specify the name of the field when accessing the property. For example, to access the URI of the screenshot2 field, you would access $content.screenshot2.shortyUrl.

Examples

The following examples demonstrated how to display images in Binary fields and Image fields while iterating in Velocity over the following Content Type:

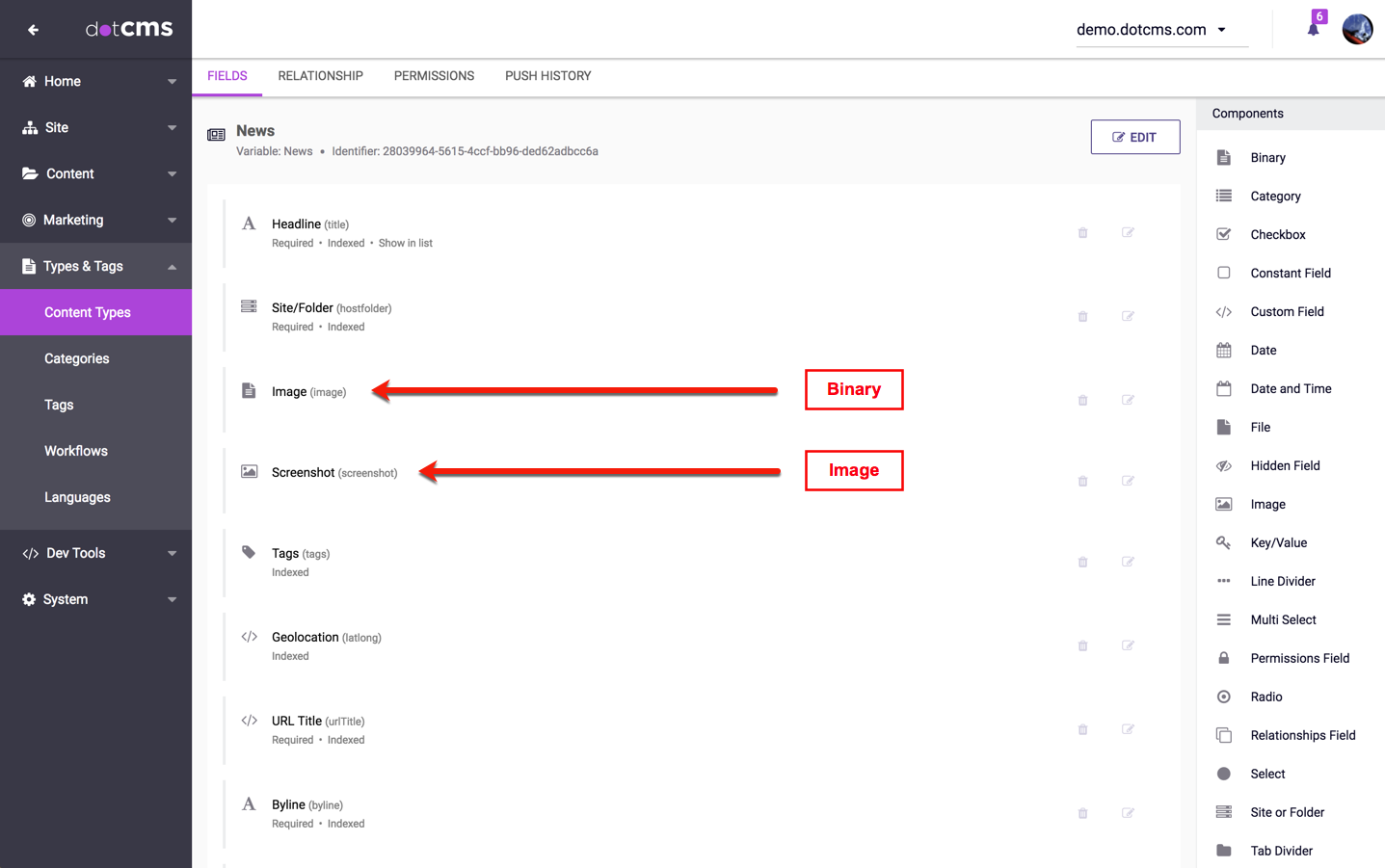

A News Content Type with both Binary and Image fields

File Asset Pathing with Shorty ID

The following example assume that the a Velocity variable named content has been set to point to a File Asset content item, as in the following code:

#set($content = $dotcontent.find("f29effee-9bab-44cb-8b19-399cbb4a08ed"))
Access MethodVelocity CodeExample Result
“Shorty” ID$content.shortyf29effee9b
“Shorty” URL$content.shortyUrl or
$content.fileAsset.shortyUrl
/dA/f29effee9b/bm-logo.png
“Shorty” URL using inode
(instead of identifier)
$content.fileAsset.shortyUrlInode/dA/468bdf6d30/bm-logo.png

Pull News Content with display of a Binary field

In the following examples, the variable name of the Binary field in the Content Type is “image”.

Binary Field Properties, Resizing, Filtering

Note: When any of these methods are used on a Content Type with multiple Binary fields, the ID or URL returned is always the one from the first Binary field on the Content Type.

Access MethodVelocity CodeExample Result
Binary Field “Shorty” ID$newsItem.shortydecd7a9812
Binary Field “Shorty” URL$newsItem.shortyUrl or
$newsItem.image.shortyUrl
/dA/decd7a9812/zombies.jpg
Note: When using the property without the name of the field (e.g. without .image), the shorty URL for the first Binary field on the Content Type is always returned.
Binary Field “Shorty” URL using inode
(instead of identifier)
$newsItem.shortyUrlInode or
$newsItem.image.shortyUrlInode
/dA/91ec275d49/zombies.jpg
Note: Always returns the shorty URL for the first Binary field on the Content Type
Binary Field image with Resize$newsItem.image.shortyUrl/200w/dA/decd7a9812/image/zombies.jpg/200w
Binary Field Properties, Resizing, Filtering (No Shorty ID)
  1. BINARY RESIZE: /contentAsset/image/$newsItem.identifier/image/filter/Resize/resize_w/500

    Ex. output: /contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Resize/resize_w/500
  2. RAW BINARY IMAGE EXPORTER: $newsItem.image

    Ex. output: com.dotmarketing.viewtools.content.BinaryMap@68c7c174[name=zombies.jpg,size=244 KB,rawUri=/contentAsset/raw-data/decd7a98-12fa-4464-a893-5531f518f310/image,resizeUri=/contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Resize,thumbnailUri=/contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Thumbnail,file=/Users/deangonzalez/singledotcms/tomcat8/webapps/ROOT/assets/9/1/91ec275d-49a1-440a-85c9-40aaff283786/image/zombies.jpg]
  3. BINARY IMAGE RAW URI: $newsItem.image.rawUri

    Ex. output: /contentAsset/raw-data/decd7a98-12fa-4464-a893-5531f518f310/image
  4. BINARY IMAGE RESIZE URI WITH PARAMETERS:: $newsItem.image.getResizeUri(100, 100)

    Ex. output: /contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Resize/resize_w/100/resize_h/100
  5. BINARY IMAGE RESIZE URI WITHOUT PARAMETERS: $newsItem.image.resizeUri

    Ex. output: /contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Resize
  6. BINARY IMAGE THUMBNAIL URI WITH PARAMETERS: $newsItem.image.getThumbnailUri(100, 100,"255255255")

    Ex. output: /contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Thumbnail/thumbnail_w/100/thumbnail_h/100/thumbnail_bg/255255255
  7. BINARY IMAGE THUMBNAIL URI WITHOUT PARAMETERS: $newsItem.image.thumbnailUri

    Ex. output: /contentAsset/image/decd7a98-12fa-4464-a893-5531f518f310/image/filter/Thumbnail

    *For more information, see the documentation on Binary and Image field Resizing and Processing.

Pull News Content with Display of an Image field

In the following examples, the variable name of the Image field in the Content Type is “screenshot”.

  1. IMAGE FIELD SHORTY ID: $newsItem.screenshot.shorty (Image field name = “screenshot”)

    Ex. output: a27c14b8a0
  2. IMAGE FIELD SHORTY URL: $newsItem.screenshot.shortyUrl

    Ex. output: /dA/a27c14b8a0/Rogue.jpg
  3. RESIZE IMAGE FIELD WITH SHORTY URL: $newsItem.screenshot.shortyUrl/200w

    Ex. output: /dA/a27c14b8a0/Rogue.jpg/200w
  4. RAW IMAGE FIELD EXPORTER: /dA/$newsItem.screenshot.map.identifier/fileAsset

    Ex. output: /dA/a27c14b8-a09a-4d3a-844a-2baee22fa14e/fileAsset
  5. RESIZE IMAGE FIELD NO SHORTY URL: /contentAsset/image/$newsItem.screenshot.map.identifier/fileAsset/filter/Resize/resize_w/500

    Ex. output: /contentAsset/image/a27c14b8-a09a-4d3a-844a-2baee22fa14e/fileAsset/filter/Resize/resize_w/500

    *For more information, see the documentation on Binary and Image field Resizing and Processing.
